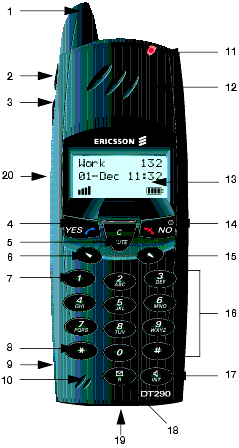

1 Antenna
2 Volume Up
Off hook: raise earpiece volume. See section Adjustments.
3 Volume Down
Off hook: lower earpiece volume. See section Adjustments.
4 Off hook / Yes
5 Clear / Mute
Delete latest entered digit. Backspace when editing text. Cancel a menu option. Microphone-, ringer- and warning on/off, see sections During Calls and Adjustments.
6 Control key (up)
Scroll up through menus or name list. Move left in choices.
7 1 / Space
Space when editing text. See section Phone Book.
8 Star / Pause / Text case
Insert a dial tone pause. Upper/lower case in text mode. See section Phone Book.
9 Battery (rearside)
See section Installation.
10 Microphone
11 Warning light
Ringing, message waiting, battery low, exit cover area.
12 Earpiece
The phone may retain small magnetic articles around the earpiece region.
13 Display (3 rows)
Display at rest. Work is the network name and 132 is (your) extension number. See section Display info.
14 On/Off / On hook / No
Switch on/off, end call, one menu back. Cancel a menu option.
15 Control key (down)
Scroll down through menus, name list. Move right in choices.
16 Keypad
17 Handsfree
Activate handsfree speaking. See sections Incoming Calls, Outgoing Calls and During Calls.
18 R/Message
Put call on hold (inquiry), take call off hold or enter the message system. See sections During Calls and Internal Messages.
19 Accessory connectors
See section Installation.
20 Loudspeaker (rearside)
For handsfree speaking function. See sections Incoming Calls, Outgoing Calls and During Calls.
|
||||||
|
||||||
|
