The display gives you visual feedback on all actions that you perform, and also textual warnings. The upper two rows are text rows (12 possible characters in each row), showing menus that you can access, names and numbers that you edit or dial, your phone ID etc. The lower row displays different statuses, visualised by icons.
 |
Menu pointer
Shows the menu that can be accessed by pressing the YES key.
 |
Number to long for display
There are more digits to the left.
 |
Dash
Indicates that a pause is programmed in the telephone number.
CallList icon
Marks an entry in the CallList. Three different call types are displayed:
 |
Exclamation Mark
Marks an unread entry in an entry list.
|
Signal strength
On when your phone is locked to the system. The bars indicate reception quality. Four bars indicate optimal reception.
|
Ringer off
Ringing signal muted or microphone off.
|
Key lock
|
Call
On when your phone is off hook and flashes during ringing.
|
Message
|
Call info
New unanswered entry in the MissedCalls list.
|
Battery gauge
The battery cells are flashing sequentially when the battery is being charged and is on when charging is completed. Indicates the amount of talk and standby time left.
An alarm sounds when there is less than 15 minutes calling time left in the battery.
Depending on which network you are connected to, additional display features are available. For example displaying of date and time. Ask your system administrator if you require additional display features.

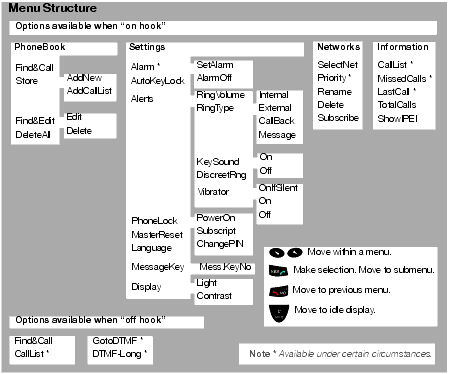

The available phone specific functions and network functions can be accessed via the DT290 menus.
 or  |
Press to access the on hook menu when in stand-by mode or to access the off hook menu during a call (see below)
|
||||||
|
||||||
|
Missed call
